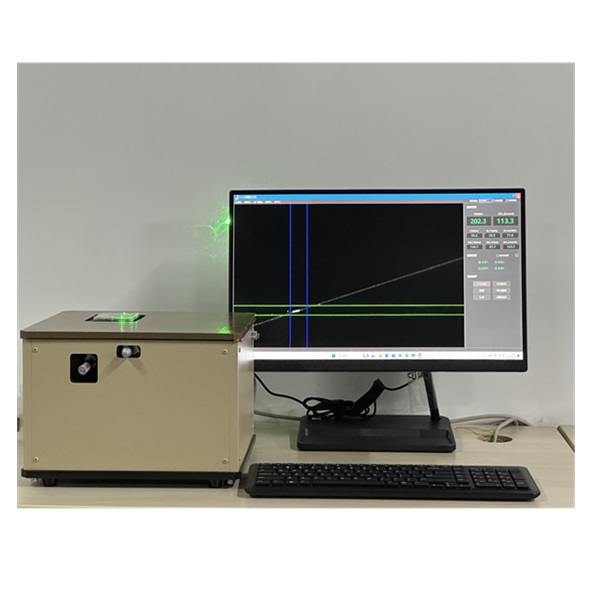

JF-6 Surface Stress Meter

JF-6 Glass Stress Meter uses scattered light photoelasticity to measure the stress distribution of chemically tempered glass. It can measure the stress distribution of chemically strengthened glass with Li+ to Na+ ion exchange.

Specification：

Principle： scattered light photoelasticity
Range：CS 0~2000MPa，DOL 10~600μm
Resolution：Stress：5MPa Depth 5μm
Light Source： Laser 520nm,<10mw
Meter Weight：10 Kg
Sample Size：Flat
Application：chemically tempered glass, double ion exchange glass, thermally tempered glass
PC：I5 CPU，8G memory，512GHardDisk，1920*1080 Resolution，window11 Operation System
Software：JF-6 Glass Stress Meter Software
